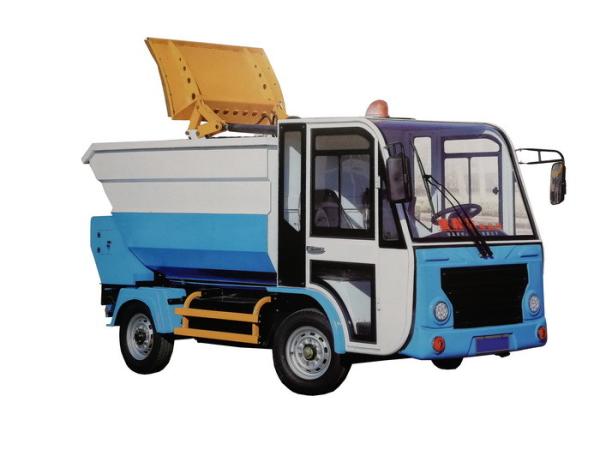

Four Wheeler Electric Garbage Truck / Large Capacity Electric Waste Trucks

    Buy cheap Four Wheeler Electric Garbage Truck / Large Capacity Electric Waste Trucks from wholesalers

    Buy cheap Four Wheeler Electric Garbage Truck / Large Capacity Electric Waste Trucks from wholesalers
    • Buy cheap Four Wheeler Electric Garbage Truck / Large Capacity Electric Waste Trucks from wholesalers

    Four Wheeler Electric Garbage Truck / Large Capacity Electric Waste Trucks

    Ask Lasest Price
    Brand Name : dycon
    Model Number : Electric Garbage Vehicle
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 300 Set/Sets per Month
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    Four Wheeler Electric Garbage Truck / Large Capacity Electric Waste Trucks

    Four Wheeler Electric Garbage Truck / Large Capacity Electric Waste Trucks​


    Product Application


    Electric Garbage Truck is a brand new zero-emission pure electric garbage collector, which is made of the chassis of the automobile with the frame and crossbeam riveted as a whole. The car adopts panoramic cab, rear hanging bucket turning device and pushing and pressing device, the performance is ahead of the domestic similar products, the appearance of the car is fashionable and simple, simple operation, flexible operation, low noise.


    Electric Garbage Truck is a professional new energy equipment specially designed for urban environmental sanitation. It is widely used in high-end residential areas, cleaning properties, resorts, factories, industrial parks, campuses, scenic spots and other public places, providing them with an efficient, low-noise, green and environment-friendly cleaning method.


    Electric Garbage Truck Parameters


    Specification for Electric Garbage Truck
    No.
    Item
    Unit
    Parameter
    1
    Dimension
    mm
    4200×1480×2100
    2
    Passenger
    People
    2
    3
    Maximum speed
    km/h
    ≤24
    4
    Minimum turning radius
    m
    5.2
    5
    Mileage
    km
    80-100
    6
    braking ability
    m
    4
    7
    Front wheelbase/rear wheelbase
    mm
    1200/1200
    8
    Wheelbase
    mm
    2150
    9
    Tire size
    175R13
    10
    Minimum ground clearance
    mm
    190
    11
    Maximum climb
    %
    20
    12
    Travelling motor power
    kw
    5
    13
    Oil pump motor power
    kw
    1.3
    14
    Battery
    kwh
    15.12
    15
    Grey box capacity
    m3
    3
    16
    Loading trash can specification
    L
    120/240
    17
    Machine weight
    kg
    2040
    18
    Rated load
    kg
    1500
    19
    Lithium battery
    V
    48

    Electric Garbage Truck Advantage


    Loading and unloading of convenient

    Adopt rear hanging bucket turning device, reduce working width and operate flexibly. After each bucket turning, the hydraulic push plate can push the dumped garbage and compaction to the front of the garbage box, improve the load of the box and ensure the smooth loading of the rear crane.

    Strong power

    The vehicle adopts lightweight design and USES 48-v lithium battery for power, energy saving and environmental protection, with longer driving range.

    Large loading capacity

    The ash box is made of stainless steel, with a capacity of 3 cubic meters and a rated load of 1.5 tons. Small garbage feeding port is set on the side of the ash box, which is convenient for manual throwing.

    Real-time operational monitoring

    The vehicle control system adopts single chip microcomputer control, resistance type accelerator, with anti-electromagnetic interference, anti-flying, start delay and reverse deceleration, electronic anti-slip slope and other safety functions

    Safe and reliable

    The rear part of the vehicle is equipped with a ground support oil cylinder, which can support the stability of the vehicle when the garbage collection and transport box is dumped as a whole, thus making the garbage collection and transport box with large capacity dump more safely.

    Elegant and beautiful

    Cab glass adopts hyperboloid streamlined design. Automobile spray painting technology, automobile tempered glass, the whole car elegant and beautiful.

    Easy to maintenance

    The vehicle layout is reasonable, the box can be lifted, the two sides of the decorative plate is set up access doors, motors, controllers, transmission, fans and other daily maintenance points have enough maintenance space, so that the customer's daily maintenance is very convenient.

    Wide range of adaptation

    Strong suction, good cleaning effect. Short wheelbase, small turning radius, widely used in municipal sanitation, cleaning property, industrial parks, campus cleaning operations.

    Full protection

    In order to protect the safety of human body, key machinery and electrical parts, protection measures are fully considered in the design. Even if the operation is not intentional, there will be no harm to the equipment. Relevant warning and warning signs are posted on obvious parts of the vehicle, and the reversing image is set on the main control platform of the cab to ensure the safety of operation and operation.


    Details


    Company Advantages:


    1. Factory direct sales, stable supply.
    2. Professional development and design.
    3. Best quality control and competitive prices.
    4. Fast delivery, safe transportation.
    5. OEM & ODM design can be offered, customized your company logo, packing, manual and so on.

    6. All of our products warranty is one year, every product will be test under the QC staff before shipment. For the bulk order, the packing picture and test detail video will send you first before shipment.


    Dycon has a vibrant team, which is composed of 10 senior staff for many years engaged in the cleaning industry and lovely young people, they love life, love clean industry, hard working, enthusiastic customer exchanges with them. You will feel their professional and meticulous, choose Dycon, there will be a good team for your service
