Product Description:

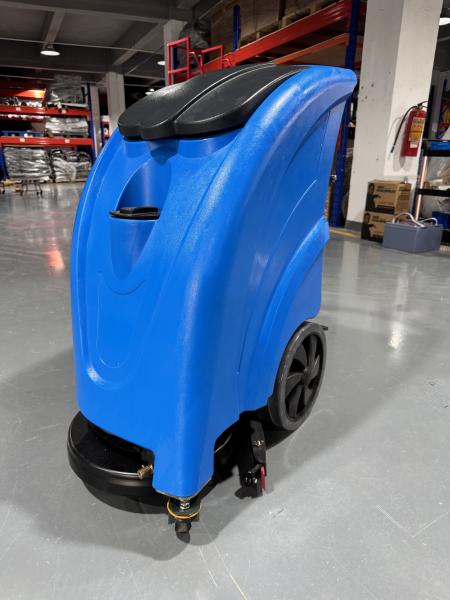

WS25 Walk-behind Scrubber: Compact Powerhouse Redefining Warehouse
Efficiency
In the fast-paced logistics and retail industries, space
optimization and operational efficiency are critical. Combining
unprecedented compactness (900×620×1200 mm) with industrial-grade
performance, the WS25 walk-behind scrubber reimagines the design of
cleaning equipment, making it the ultimate solution for modern
confined spaces.
Micro-engineering excellence
Despite its ultra-slim profile – shorter than a standard pallet and
narrower than most racking units – the WS25 is equipped with an
extraordinary 25L dual tank system (freshwater/sewage). This
capacity enables continuous operation 30-40% longer than comparable
models, covering up to 2,000 square meters per refill while
maintaining weight distribution to prevent operator fatigue. The
low center of gravity chassis ensures stability even on tilted dock
boards or uneven surfaces.
Unrivaled Manoeuvrability
The game-changing pivoting mechanism allows true 360° fixed
rotation – a feature previously only available on robotic cleaners.
Operators can change direction in 50cm wide aisles without
cumbersome multi-point turns, which is particularly important in
environments such as pharmaceutical cold storage or e-commerce
distribution centers where every centimeter counts for workflow.
The enhanced caster system features an 85° steering angle for
precise cleaning of edges where rack bases and walls meet.
Industrial Strength, Commercial Agility
The 17-inch brush assembly, providing 50kg of downward pressure,
easily removes embedded tire marks in warehouse aisles or sticky
residue in supermarket checkout areas. Patented Cross Flow
Technology ensures 98% water recovery, leaving surfaces dry in just
90 seconds – essential for high-traffic areas such as airport
retail lobbies.
Smart Operator-Focused Design
• Ergonomic Control Panel.
• Modular Brush System: Change brushes in less than 2 minutes
without tools
• ECO Mode: Regulates water flow based on surface contamination
sensor (0.8-2.5L/min)
• LED Workspace Lighting: 180° perimeter lighting for low-light
environments
From 24/7 manufacturing plants to historical museums with narrow
corridors, the WS25 proves that compact size doesn’t need to
sacrifice performance. By completing only one clean in checkout
lanes and narrowing inventory aisles, it reduces employee
backtracking by up to 70% compared to conventional machines. This
smart engineering doesn’t just clean floors, it redefines space
economics, turning confined areas from operational challenges to
efficiency opportunities.
A lithium-ion battery option is available to enable continuous
shift operation.
Technical Parameters:
| Model | Unit | WS25 |
| Voltage | Volt | 24V |
| Cleaning Path | Inch | 17 |
| Traction | Traction | backward |
| Number of brushes | Pcs | 1 |
| Brush rotation speed | rpm | 175 |
| Brush motor | V/Watt | 24V550W |
| Brush pressure | KG/Lb | 20 |
| Squeegee | mm/Inch | 580/23 |
| Solution Tank | L | 25 |
| Recovery Tank | L | 25 |
| Batteries | V/AH | 12V53AH x2 |
| Type batteries | standard | Lead-acid |
| Sound Level | dBA | 65 |
| Run time per charge | Hour | 4 |
| Cleaning Productivity | m²/H Ft²/H | 2000 |
| Machine sizes | L×W×H mm | 900X620X1200 |
| L×W×H Inch | 35X24X47 |
| Gradeability | % | * |
